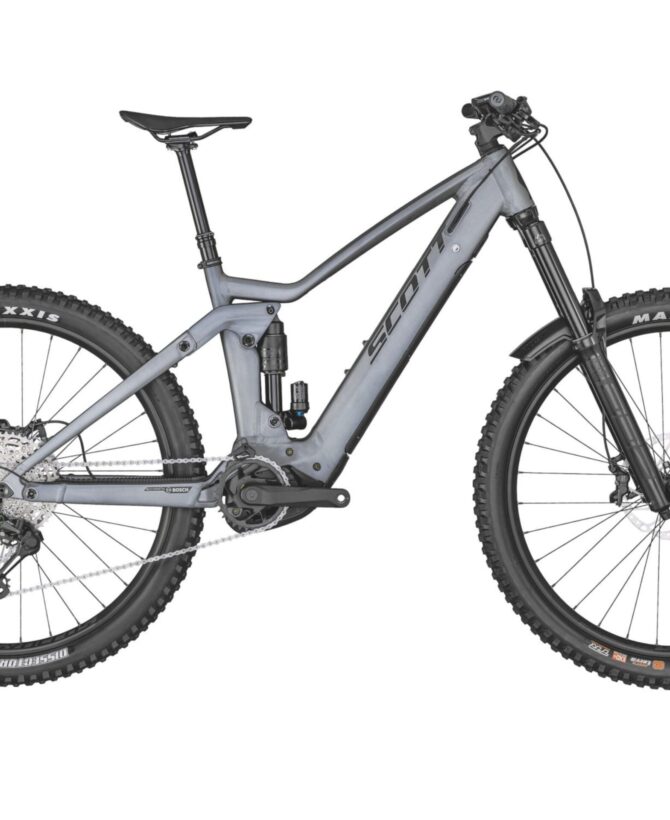

The Full Scoop on the Scott Ransom eRide 920

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Scott Ransom eRide more fun and versatile. More ups, more down, more hoots, more hollers. The long travel eMTB to rule them all.

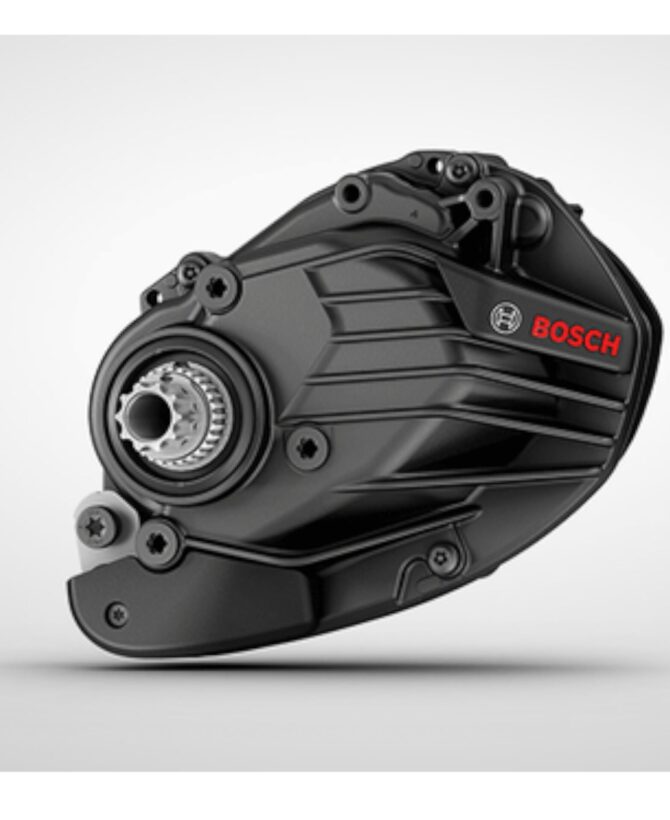

• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph

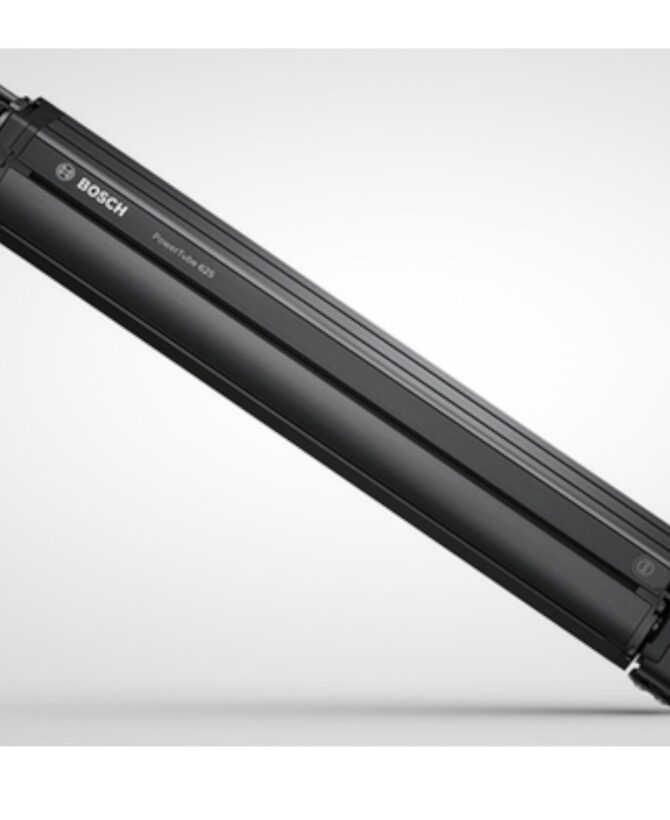

  Battery	PowerTube 625Wh
  Display	Bosch Purion
  Charger	4A Charger

• Frame	Alloy Frame / Virtual 4 link kinematic VLK
  Fork	RockShox ZEB / Air 15x110mm QR axle tapered steerer / Reb. Adj. / 180mm travel
  Rear Shock	FOX Float X2 Performance / Air LSC, LSR w/2-Pos. lever
  Front Brake	Shimano BR-MT520 4 Piston / SM-RT64 CL 203mm
  Rear Brake	Shimano BR-MT520 4 Piston / RT-EM600 CL 203mm
  Rear Derailleur	Shimano XT 12 speed
  Shift Levers	Shimano SL-M6100
  Chain	Shimano CN-M6100
  Cassette	Shimano CS-M6100 / 10-51 T
  Crankset	FSA CK-745 165mm / 34T
  Chain Ring	FSA WB604 / 34T / DM / Steel
  Chain Guard	Spec not provided
  Rims	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
  Front Hub	Shimano HB-MT410-B CL / 15x110mm
  Rear Hub	Shimano FH-MT410-B CL / Boost 12x148mm
  Front Tire	Maxxis Assegai 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Rear Tire	Maxxis Assegai 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Handlebar	Syncros Hixon 2.0 Rise / Alloy 6061D.B. 20mm rise / 8° / 800mm Syncros Pro lock-on grips
  Stem	Syncros AM2.0/ 6061 Alloy 31.8mm / 4° / 1 1/8
  Headset	Acros / 1.8″ ZS66 OD74 / integr. Cable
  Grips	Syncros Pro lock-on
  Saddle	Syncros Tofino 2.0 Regular CRMO rails
  Seatpost	Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M & L size 150mm / XL size 170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  HEAD TUBE ANGLE	A	64 °	64 °	64 °	64 °
  HEAD TUBE LENGTH	B	4.7 IN	4.7 IN	4.9 IN	4.9 IN
  TOP TUBE HORIZONTAL	C	22.4 IN	23.4 IN	24.8 IN	26 IN
  STANDOVER HEIGHT	D	30 IN	30.2 IN	31.1 IN	31.5 IN
  BB OFFSET	E	-0.9 IN	-0.9 IN	-0.9 IN	-0.9 IN
  BB HEIGHT	F	13.9 IN	13.9 IN	13.9 IN	13.9 IN
  WHEEL BASE	G	48.4 IN	49.4 IN	50.7 IN	51.9 IN
  BB CENTER TO TOP OF SEATTUBE	I	16.5 IN	17.3 IN	18.5 IN	19.7 IN
  SEAT ANGLE	J	76.5 °	76.3°	76.1 °	75.9 °
  CHAINSTAY	K	18.3 IN	18.3 IN	18.3 IN	18.3 IN
  REACH	L	16.3 IN	17.3 IN	18.5 IN	19.7 IN
  STACK	M	25.4 IN	25.4 IN	25.6 IN	25.6 IN
  STEM LENGTH	N	2.0 IN	2.0 IN	2.0 IN	2.0 IN
  TRAIL	O	5.4 IN	5.4 IN	5.4 IN	5.4 IN
